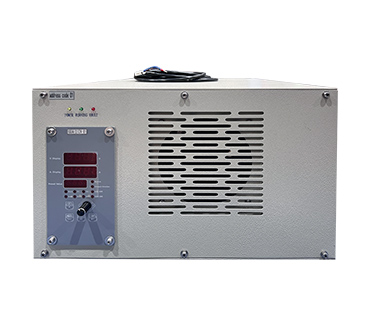

100A ±12V Electrolysis of Sodium Chloride Rectifier

Specifications:

Input parameters: Three phase AC400V±10%, 50~60HZ

Output parameters: DC 0~±12V 0~100A

Output mode: Common DC output

Cooling method: Air cooling

Power supply type: IGBT-based

Application Industry: Sodium Chloride Electrolysis Rectifier，such as Hydrogen Electrolysis, ballast water treatment, seawater or salt water sodium hypochlorite.

Description:

The Hydrogen Electrolysis Rectifier is a DC power supply device used to produce hydrogen by electrolyzing water. It converts AC power into DC power to provide the required electrical energy for the electrolyzer, thereby decomposing water molecules to produce hydrogen and oxygen. This type of equipment is essential for achieving green energy transformation and hydrogen economy.

Technical Parameters：

Characteristic Types	Parameter Items	Technical Requirements
Power Types	Power types	High-frequency Power Supply
	Model and specifications	TBFA -100A/±12V
	Cooling mode	Air-cooled
	Switch tube type	IGBT
Input Characteristics	Rated Input Voltage	Three-phase, AC400V±10% ,50HZ
	Rated Input Power	1.4KVA
	Rated Input Current	AC 1.8A
	Input Power Factor	COSΦ≥0.95
Output Characteristics	Output Voltage	DC 0～±12V
	Output Current	DC 0～100A
	Stabilized Current Precision	≤1%（Rated Current)
	According to accuracy	1A，0.01V
	Rated Output efficiency	≥90%
Environmental Conditions	Installation site	Indoor installations
	Altitude	≤1500 meters
	Ambient temperature	-20℃～40℃
	Relative humidity	≤90％
Control Mode	Operating mode	PLC, ADDA, Ethernet, RS485 and RS232
Weight	Net weight	About 15KG
External Dimension	HeightWidthDepth	H225mmW428mmD230mm
Protection Characteristics	With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function

Application Industry

*Photovoltaic, wind power, wave power, biomass power(green power) are connected to the power sourcerectifier and the electrolyzer to electrolyze hydrogen production

*Electrolytic hydrogen production by power source rectifer connected to conventional power grid and integrated with electrolyzer

*Inverter system between hydrogen energy storage and power grid

Optional models:

Model	Input	Output	*Dimension (HWL)/mm*
TDSB-9000A/38V	Three phase AC380V±10% 50HZ	DC 0～38V DC 0～9000A	1640×1250×1300
TDSB-6000A/50V	Three phase AC380V±10% 50HZ	DC 0～50V DC 0～6000A	2040×680×898
TDSB-2000A/70V	Three phase AC380V±10% 50HZ	DC 0～70V DC 0～2000A	1875×1280×1300
TDSB-1500A/80V	Three phase AC380V±10% 50HZ	DC 0～80V DC 0～1500A	1015×620×1098
TDSB-700A/40V	Three phase AC380V±10% 50HZ	DC 0～40V DC 0～700A	180×310×799
TDSB-200A/150V	Three phase AC380V±10% 50HZ	DC 0～150V DC 0～200A	285×434×750
TDSB-10000A/100V	Three phase AC380V±10% 50HZ	DC 0～100V DC 0～10000A	2200×2500×1450
TDSB-8KA/30V	Three phase AC380V±10% 60HZ	DC 0～30V DC 0～8000A	2055×1480×1480
TDSB-3KA/30V	Three phase AC380V±10% 60HZ	DC 0～30V DC 0～3000A	2055×1780×1230
TDSB-300A/30V	Three phase AC380V±10% 50HZ	DC 0～30V DC 0～300A	180×310×799
TDSB-6000A/50V	Three phase AC380V±10% 50HZ	DC 0～50V DC 0～6000A	2100×800×1180
TDSB-2000A/70V	Three phase AC380V±10% 50HZ	DC 0～70V DC 0～2000A	1425×620×1098
TDSB-5000A/45V	Three phase AC380V±10% 50HZ	DC 0～45V DC 0～5000A	1675×650×898
TDSB-500A/50V	Three phase AC380V±10% 50HZ	DC 0～50V DC 0～500A	180×310×700
TDSB-1000A/60V	Three phase AC380V±10% 50HZ	DC 0～60V DC 0～1000A	1015×620×1098
TDSB-1000A/40V	Three phase AC380V±10% 50HZ	DC 0～40V DC 0～1000A	180×387×972
TDSB-500A/40V	Three phase AC380V±10% 50HZ	DC 0～40V DC 0～500A	180×310×799
TDSB-650A/30V	Three phase AC380V±10% 50HZ	DC 0～30V DC 0～650A	180×310×700
TDSB-200A/160V	Three phase AC380V±10% 50HZ	DC 0～160V DC 0～200A	285×434×750
TDSB-200A/120V	Three phase AC380V±10% 50HZ	DC 0～120V DC 0～200A	285×434×750
TDSB-400A/24V	Three phase AC380V±10% 50HZ	DC 0～24V DC 0～400A	180×310×700
TDSB-200A/24V	Three phase AC380V±10% 50HZ	DC 0～24V DC 0～200A	180×310×460
TDSB-3KA/20V	Three phase AC380V±10% 60HZ	DC 0～20V DC 0～3000A	2055×1780×1230
TDSB-1000A/30V	Three phase AC380V±10% 50HZ	DC 0~30V DC 0～1000A	180×310×664
※Can be customized according to requirements※
