0~6V 0~600A Copper Plating Rectifier

Specifications:

Input parameters: Three phase AC380V±10%, 50HZ

Output parameters: DC 0~6V 0~600A

Output mode: Common DC output

Cooling method: Air cooling

Power supply type: IGBT-based

Application Industry: Surface treatment industry, such as cooper plating

Description:

Electroplating is the process of applying a thin layer of other metals or alloys on the surface of certain metals by electrolysis. It is a process of applying a metal film to the surface of metals or other materials to prevent metal oxidation (such as rust), improve wear resistance, electrical conductivity, reflectivity, corrosion resistance (copper sulfate, etc.) and enhance aesthetics.

Types of plating:

Copper plating: priming, enhance the ability to adhere to the plating layer, and the ability to resist corrosion. (Copper is easy to oxidation, oxidation, copper green no longer conductive, so copper-plated products must do copper protection)
Nickel plating: priming or appearance, to enhance the corrosion resistance and wear resistance, (where the chemical nickel for the modern process of wear resistance than chrome plating). (Note that many electronic products, such as DIN head, N head, no longer use nickel priming, mainly because nickel is magnetic, will affect the electrical properties inside the passive intermodulation)
Gold plating: improve the conductive contact impedance, enhance signal transmission. （Gold is the most stable, but also the most expensive.)
Palladium-nickel plating: improve the conductive contact impedance, enhance signal transmission, wear resistance than gold.
Tin-lead plating: improve soldering ability, soon to be replaced by other substitutes (because of the lead content is now mostly changed to bright tin and mist tin plating).
Silver plating: improve the conductive contact impedance, improve signal transmission. (Silver performance is the best, easy to oxidation, oxidation also conductive)

Elements of electroplating：

Cathode: the plated object, referring to various connector terminals.
Anode: If it is soluble anode, it is the metal to be plated. If it is insoluble anode, most of them are precious metals (white gold, iridium oxide).
Plating solution: plating solution containing ions of the metal to be plated.
Plating tank: The tank that can bear and store the plating solution, generally considering strength, corrosion resistance, temperature resistance, etc.
Rectifier: The equipment to provide DC power supply.

Technical Parameters：

Characteristic Types	Parameter Items	Technical Requirements
Power Types	Power types	High-frequency Power Supply
	Model and specifications	TBFBZ-600A/6V
	Cooling mode	Air-cooled
	Switch tube type	IGBT
Input Characteristics	Rated Input Voltage	Single-phase, AC220V±10% ,50HZ
	Rated Input Power	4.2KVA
	Rated Input Current	AC 6.3A
	Input Power Factor	COSΦ≥0.95
Output Characteristics	Output Voltage	DC 0～6V
	Output Current	DC 0～600A
	Stabilized Current Precision	≤1%（Rated Current)
	According to accuracy	1A，0.01V
	Rated Output efficiency	≥91%
Environmental Conditions	Installation site	Indoor installations
	Altitude	≤2000 meters
	Ambient temperature	-20℃～40℃
	Relative humidity	≤90％
Control Mode	Operating mode	PLC, ADDA, Ethernet, RS485 and RS232
Weight	Net weight	About 16KG
External Dimension	HeightWidthDepth	H314mm×W190mm×D613mm
Protection Characteristics	With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function

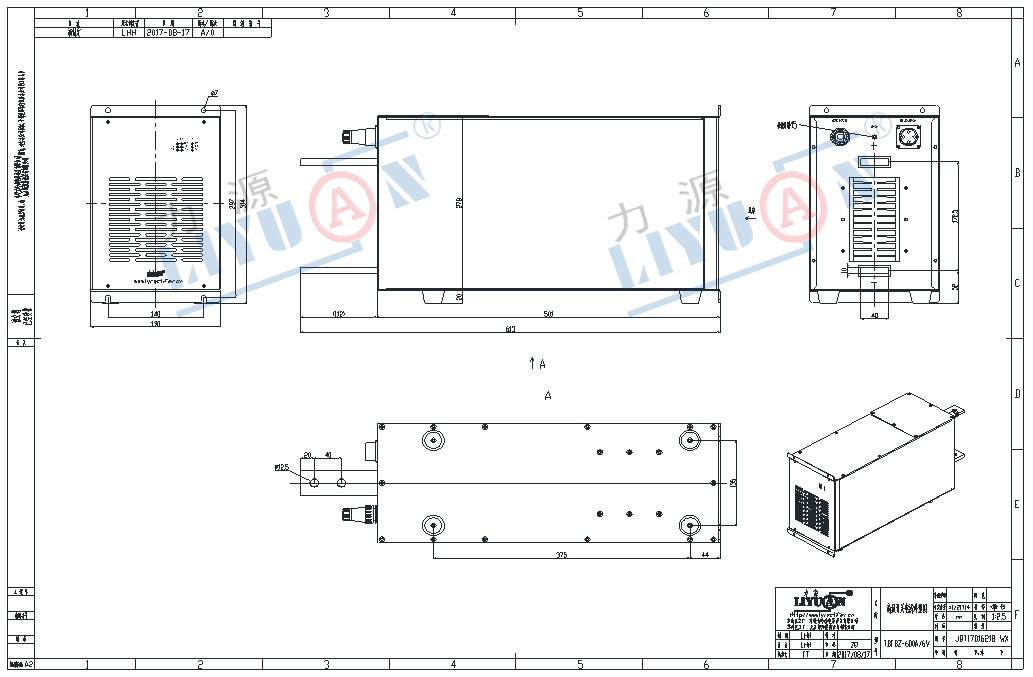

Structure:

Optional models:

Model	Input	Output	*Dimension (HWL)/mm*
TBFBZ-2000A/12V	Three phaseAC380V±10% 50HZ	DC 0～12V DC 0～2000A	238×625×692
TBFBZ-1500A/15V	Three phaseAC380V±10% 50HZ	DC 0～15V DC 0～1500A	205×692×625
TBFBZ-1500A/4V	Three phaseAC380V±10% 50HZ	DC 0～4V DC 0～1500A	238×582×644
TBFBZ-1200A/5V	Three phaseAC380V±10% 50～60HZ	DC 0～5V DC 0～1200A	200×615×490
TBFBZ-1000A/12V	Three phaseAC380V±10% 50HZ	DC 0～12V DC 0～1000A	233×615×674
TBFBZ-1000A/6V	Three phaseAC380V±10% 50HZ	DC 0～6V DC 0～1000A	327×190×613
TBFBZ-1000A/5V+G	Three phaseAC380V±10% 50HZ	DC 0～5V DC 0～1000A	327×190×613
TBFBZ-800A/10V	Three phaseAC380V±10% 50HZ	DC 0～10V DC 0～800A	233×440×550
TBFBZ-800A/4V	Three phaseAC380V±10% 50～60HZ	DC 0～4V DC 0～800A	312×190×501
TBFBZ-600A/24V	Three phaseAC380V±10% 50HZ	DC 0～24V DC 0～600A	233×615×674
TBFBZ-600A/12V	Three phaseAC380V±10% 50HZ	DC 0～12V DC 0～600A	276×420×498
TBFBZ-600A/8V	Three phaseAC380V±10% 50HZ	DC 0～8V DC 0～600A	276×420×498
TBFBZ-600A/6V+P	Three phaseAC380V±10% 50HZ	DC 0～6V DC 0～600A	312×270×501
TBFBZ-600A/5V	Three phaseAC380V±10% 50HZ	DC 0～5V DC 0～600A	327×190×613
TBFBZ-500A/24V	Three phaseAC380V±10% 50HZ	DC 0～24V DC 0～500A	233×615×674
TBFBZ-500A/12V	Three phaseAC380V±10% 50HZ	DC 0～12V DC 0～500A	276×420×498
TBFBZ-500A/6V	Single phaseAC220V±10% 50HZ	DC 0～6V DC 0～500A	312×270×613
TBFBZ-500A/5V	Single phaseAC220V±10% 50HZ	DC 0～5V DC 0～500A	312×270×501
TBFBZ-400A/8V	Three phaseAC380V±10% 50HZ	DC 0～8V DC 0～400A	276×420×498
TBFBZ-400A/6V	Three phaseAC380V±10% 50Hz	DC 0～6V DC 0～400A	225×100×433
※Can be customized according to requirements※
