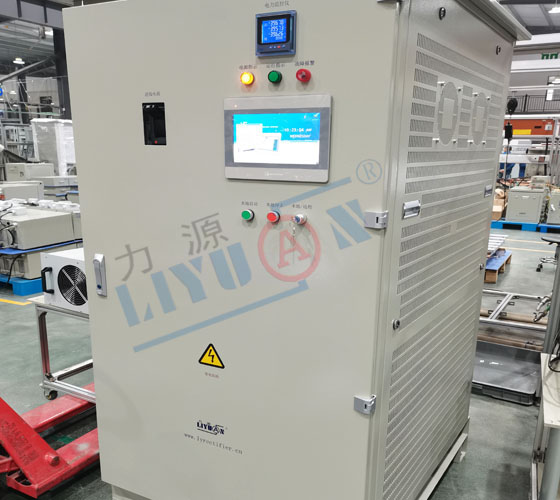

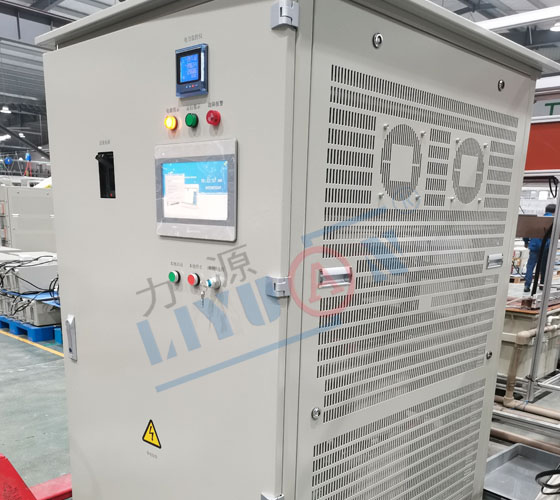

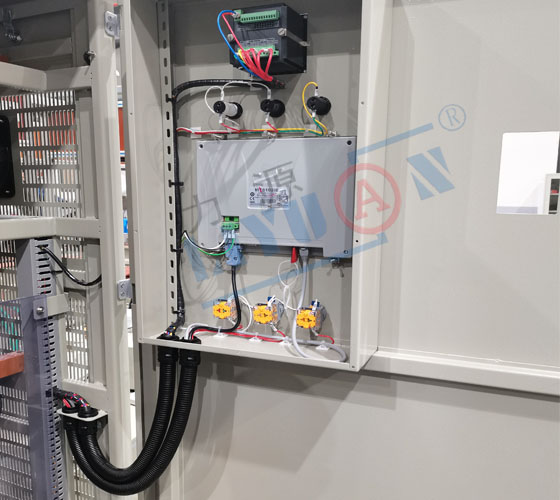

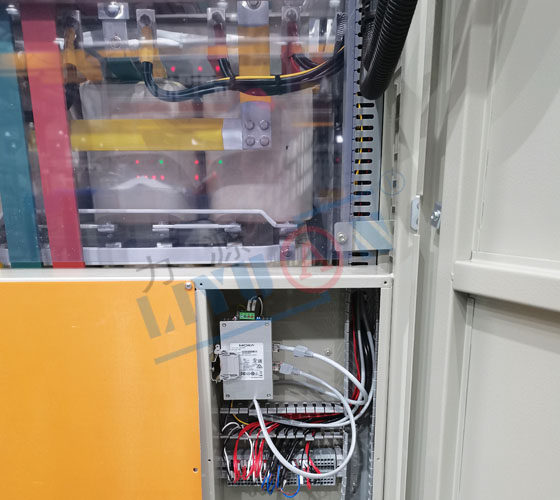

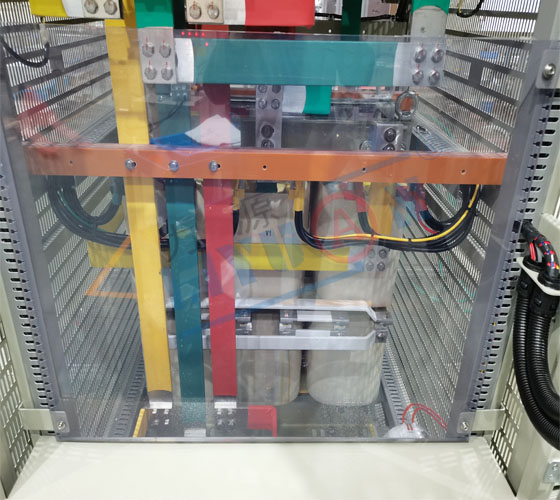

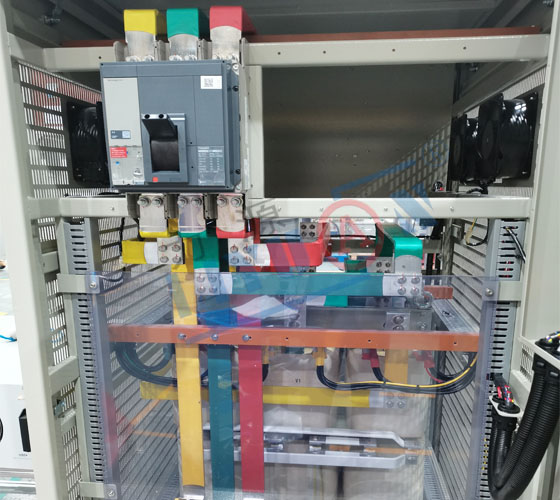

LY-FC630F Harmonic Treatment Cabinet

Specifications:

Input parameters: Three phase, AC380V±10%, 50Hz±10%

Output voltage: AC380V±10%, 3PH , 50Hz±10%

Output current: AC239Ax4 modules

Cooling method: Air cooling

Phase-shifted pulse number: 24 pulse wave

Application: Harmonic treatment, used in power grid or high requirement of current

Description:

Harmonic treatment includes harmonic treatment cabinet and APFC harmonic treatment cabinet.

Moving to harmonic treatment cabinet for one-to-one local filtering, harmonic current content before treatment is 26-32%, mainly 5 times, 7 times, 11 times, a small amount of 13 times, etc. After treatment, it is mainly the 23rd and 25th harmonics and other high order harmonics. The harmonic voltage contains ThDUW 5%, and the harmonic current contains ThDIW 6% (when rated load output, THDZ^8% (when 50 magnetic load output).

APFC harmonic governance is based on the characteristics of high frequency switch power supply, in the high frequency switch power supply, dc 630 alas pressure there, we are not using three-phase rectifier bridge to form high pressure, but the way of PWM rectifier, and other harmonic waves in a different way, this way it series, in the middle of the main circuit itself is not the harmonics.

Power source APFC power factor corrector mode (P shed rectifier) can fundamentally solve the problem, it has little influence on each other, its effect is the best, in accordance with the scope of power grid specifications, is able to achieve harmonic current distortion THD < 5%, in practical application THD 43%, although relatively higher cost, But for high frequency switching power supply, APFC harmonic treatment scheme is also a more suitable harmonic treatment.

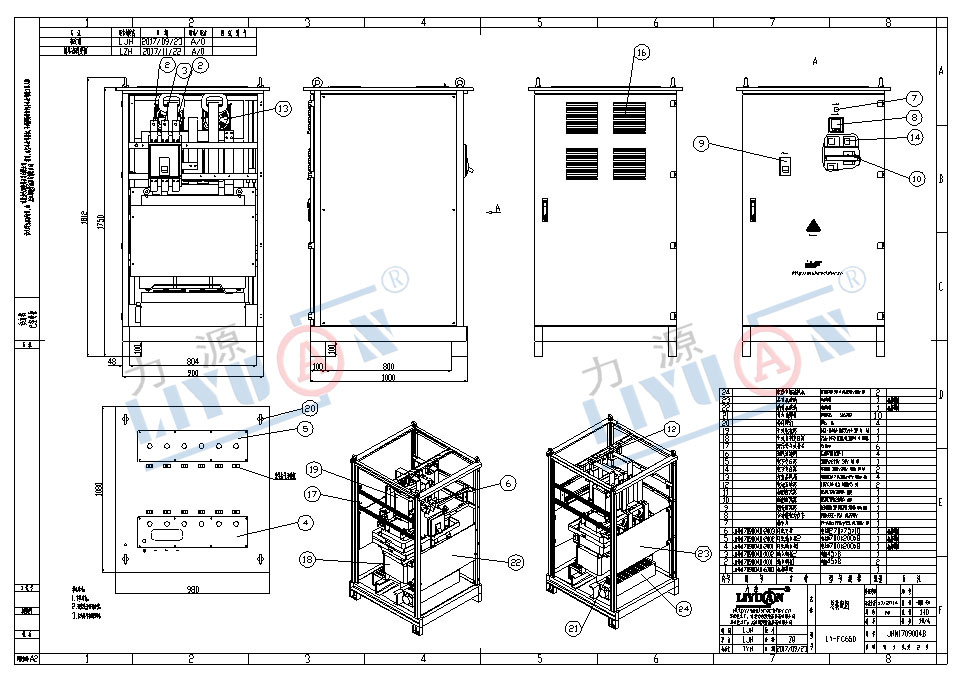

Technical Parameters：

NO.	Items	Functions and Parameters
1	Product name	Harmonic treatment cabinet
2	Model	LY-FC630F
3	Rated input voltage	AC380V±10%, 3PH , 50Hz±10%
4	Rated input current	AC977A
5	Input power factor	PF≥0. 98
6	Rated output voltage	AC380V±10%, 3PH , 50Hz±10%
7	Rated output current	AC239Ax4 modules
8	Capacity	630KVA
9	Phase-shifted pulse number	24 pulse wave
10	Voltage harmonic	THDu<5%
11	Current harmonics	THD_Z≤6% （Rated load output） THD≤8% （50% above load）
12	Rated efficiency	η>99%
13	Load type	Synchronous high frequency switching power supply
14	Operation	The product can run continuously at full load with 150% load over 120 minutes
15	Cooling type	Air cooled
16	Insulation level	Class F
17	Dielectric intensity	AC3500V/15mA/60s
18	Insulation resistance	>100MQ (DC500V)
19	IP Grade	IP42
20	Rated noise during operation	<50DB（Distance from 1.5 m measuring line）
21	Design working life	25 Years
22	Weight	About 800KG
