Input parameters: Three phase, AC380V±10%, 50Hz±10%
Output voltage: AC380V±10%, 3PH , 50Hz±10%
Output current: AC133Ax4 modules
Cooling method: Air cooling
Phase-shifted pulse number: 24 pulse wave
Application: Harmonic treatment,used in power grid or high requirement of current
Harmonic treatment includes harmonic treatment cabinet and APFC harmonic treatment cabinet.
Moving to harmonic treatment cabinet for one-to-one local filtering, harmonic current content before treatment is 26-32%, mainly 5 times, 7 times, 11 times, a small amount of 13 times, etc. After treatment, it is mainly the 23rd and 25th harmonics and other high order harmonics. The harmonic voltage contains ThDUW 5%, and the harmonic current contains ThDIW 6% (when rated load output, THDZ^8% (when 50 magnetic load output).
APFC harmonic governance is based on the characteristics of high frequency switch power supply, in the high frequency switch power supply, dc 630 alas pressure there, we are not using three-phase rectifier bridge to form high pressure, but the way of PWM rectifier, and other harmonic waves in a different way, this way it series, in the middle of the main circuit itself is not the harmonics.
Power source APFC power factor corrector mode (P shed rectifier) can fundamentally solve the problem, it has little influence on each other, its effect is the best, in accordance with the scope of power grid specifications, is able to achieve harmonic current distortion THD < 5%, in practical application THD 43%, although relatively higher cost, But for high frequency switching power supply, APFC harmonic treatment scheme is also a more suitable harmonic treatment.
| NO. | Items | Functions and Parameters |

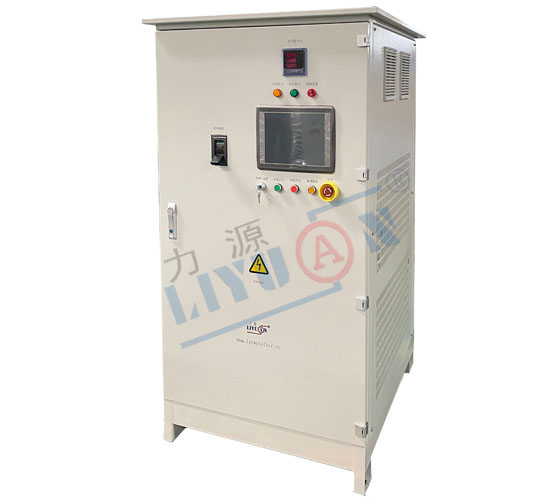

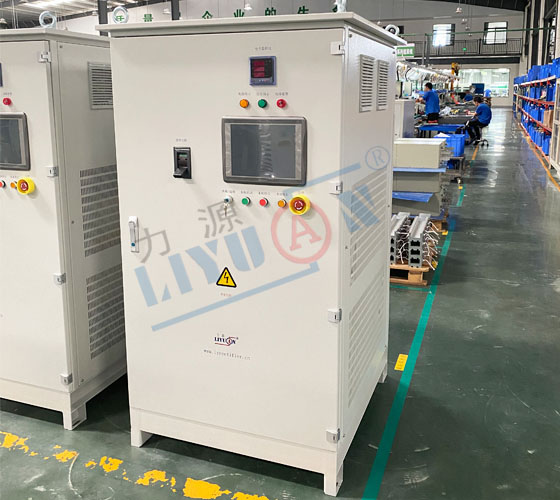

| 1 | Product name | Harmonic treatment cabinet |
| 2 | Model | LY-FC350F |
| 3 | Rated input voltage | AC380V±10%, 3PH , 50Hz±10% |
| 4 | Rated input current | AC532A |
| 5 | Input power factor | PF≥0. 98 |
| 6 | Rated output voltage | AC380V±10%, 3PH , 50Hz±10% |
| 7 | Rated output current | AC133Ax4 modules |
| 8 | Capacity | 350kVA |
| 9 | Phase-shifted pulse number | 24 pulse wave |
| 10 | Voltage harmonic | THDu<5% |
| 11 | Current harmonics | THDZ ≤6% （Rated load output） THD≤8% （50% above load） |
| 12 | Rated efficiency | η>99% |
| 13 | Load type | Synchronous high frequency switching power supply |
| 14 | Operation | The product can run continuously at full load with 150% load over 120 minutes |
| 15 | Cooling type | Air cooled |
| 16 | Insulation level | Class F |
| 17 | Dielectric intensity | AC3500V/15mA/60s |
| 18 | Insulation resistance | >100MQ (DC500V) |
| 19 | IP Grade | IP42 |
| 20 | Rated noise during operation | <50DB（Distance from 1.5 m measuring line） |
| 21 | Design working life | 25 Years |
| 22 | Weight | About 800KG |
