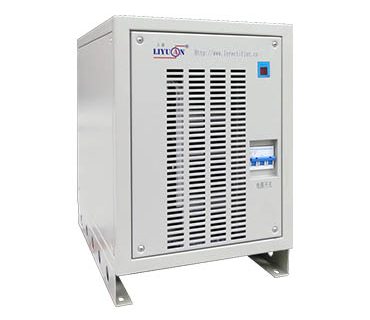

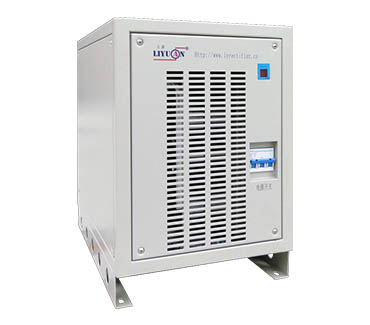

0~12V 0.8~5KA Electroplating Hard Chrome Rectifier HIFB Series

Feature advantages:

Perfect outside shape and inside structure, with different shapes optional.
High control precision, low ripple wave coefficient and stronger uniform plating capability
High efficiency and power factor, nice energy-saving.
Regulated voltage and current control mode
Design without N line broadly reduce the third harmonic Ripple Interference and highly improve its power factor.
Distinctive anti-corrosion and sealing design enables placement at any position around the tank.
Soft start, over-voltage, over-current, phase failure and over-heat protection.
RS485 interface or ADDA 4-20MA, 0-10V and 0-5V control signals are available
The three proofing glue is used to prevent against salt, fog and acidification in the internal PCB boards, increasing the environmental anti-corrosion capability of electronic components.

Applications:

PCB electroplate, surface treatment of hardware parts, precious metal electroplate,battery industry, motor, electronics burn-in tests, hard chromium process of hardware mould etc.

Product parameters:

Input voltage	Three phase AC380V±10%, 50-60HZ
Voltage regulation precision	≤1%
Current regulation precision	≤1%
Rated efficiency	≥90%
Power factor	≥0.98
Ripple wave coefficient	1% ~ 3%
Operation environment	-10-40℃
Storage temperature	-20-50℃
Inversion frequency	18KHZ
Insulation resistance	Input-output: ≥5MO
	Input-shell: ≥5MO
	Output-shell:≥5MO
Insulation strength	Input-output: AC1500V, 10mA, 1 min
Insulation strength	Input-shell: AC1000V, 10mA, 1 min
Cooled mode	Forced air cooled
Operation conditions	24-hour operation under full load

Model specifications:

Output voltage	Output current	Dimensions
		Height（mm）	Width（mm）	Length（mm）
6V	800A,1000A	500	340	600
6V	1200A, 1500A, 2000A	500	430	620
12V	800A, 1000A, 1200A, 1500A
6V	2500A	640	480	700
12V	2000A, 3000A, 4000A
6V	500A	860	580	900

Optional models:

Model	Input	Output	Dimension (HWL)/mm
HIFB-800A/5V	Three phaseAC380V±10% 50Hz AC 6.8A 4.4KW	DC 0～5V DC 0～400A	255×210×482
HIFB-1000A/12V	Three phaseAC380V±10% 50HZ AC 21.3A 14.0KVA	DC 0～12V DC 0～1000A	500×430 ×620
HIFB-1000A/4V	Three phaseAC380V±10% 50Hz AC 6.8A 4.4KW	DC 0～4V DC 0～1000A	500×340 ×600
HIFB-1000A/15V	Three phaseAC380V±10%, 50～60Hz AC25.3A 16.7KW	DC 0～15V DC 0～1000A	500×430 ×620
HIFB-1000A/30V	Three phaseAC380V±10% 50HZ AC 50.6A 33.3KW	DC 0～30V DC 0～1000A	1790×880×1050
HIFB-1200A/12V	Three phaseAC380V±10% 50HZ AC 25.6A 16.8KVA	DC 0～12V DC 0～1200A	500×430 ×620
HIFB-1200A/15V	Three phaseAC380V±10% 50～60HZ AC 30.4A 20.0KW	DC 0～15V DC 0～1200A	440×430 ×620
HIFB-1500A/5V	Three phaseAC380V±10% 50HZ AC 13.3A 8.8KVA	DC 0～5V DC 0～1500A	500×430 ×620
HIFB-1500A/12V	Three phaseAC380V±10% 60 HZ AC 32.0A 21.1KVA	DC 0～12V DC 0～1500A	440×430 ×620
HIFB-1500A/25V	Three phaseAC415V±10%, 50Hz AC 58.0 A 41.7 KW	DC 0～25V DC 0～1500A	640×480 ×700
HIFB-1800A/12V	Three phaseAC380V±10% 50 HZ AC 36.5A 24.0KW	DC 0～12V DC 0～1800A	580×470 ×700
HIFB-2000A/12V	Three phaseAC380V±10% 50 HZ AC 40.5A 26.7KW	DC 0～12V DC 0～2000A	580×470 ×700
HIFB-2000A/15V	Three phaseAC380V±10%, 50～60Hz AC50.6A 33.3KW	DC 0～15V DC 0～2000A	640×480×700
HIFB-2000A/20V	Three phaseAC380V±10% 50HZ AC 67.5A 44.4KW	DC 0～20V DC 0～2000A	1790×880×1050
HIFB-2500A/6V	Single phaseAC220V±10% 50～60HZ AC 43.7A 16.7KW	DC 0～6V DC 0～2500A	640×480 ×700
HIFB-2500A/12V	Three phaseAC380V±10% 50HZ AC 50.6A 33.3KW	DC 0～12V DC 0～2500A	580×470 ×700
HIFB-2800A/12V	Three phaseAC480V±10% 60HZ AC 47.3A 39.3KVA	DC 0～12V DC 0～2800A	640×480×700
HIFB-3000A/12V	Three phaseAC380V±10% 50HZ AC 64.0A 42.1KVA	DC 0～12V DC 0～3000A	580×470 ×700
HIFB-3000A/15V	Three phase AC380V±10%, 50～60Hz AC 76.0A 50KW	DC 0～15V DC 0～3000A	500×340 ×600
HIFB-3500A/15V	Three phaseAC415V±10%, 50Hz AC 81.2A 58.3KW	DC 0～15V DC 0～3500A	1160×700×800
HIFB-5000A/3V	Three phaseAC380V±10% 50HZ AC 25.3A 16.7 KVA	DC 0～3V DC 0～5000A	860×580 ×900
